  • Vaccum tight, cryogenic compatible multipole and coax cables
    • Resistive twisted pair cables for temperature measurement
    • Low resistance/ superconducting twisted pair cables, compatible with piezo actuators.
    • Combined high low resistance wires for special applications (for example SQUID read-out)
  • High frequency (semi-rigid) coaxial cabling up to 20 GHz
  • Thermocoax cables for high-frequency filtering
  • MCX and MMCX RF filters for additional high frequency attenuation.

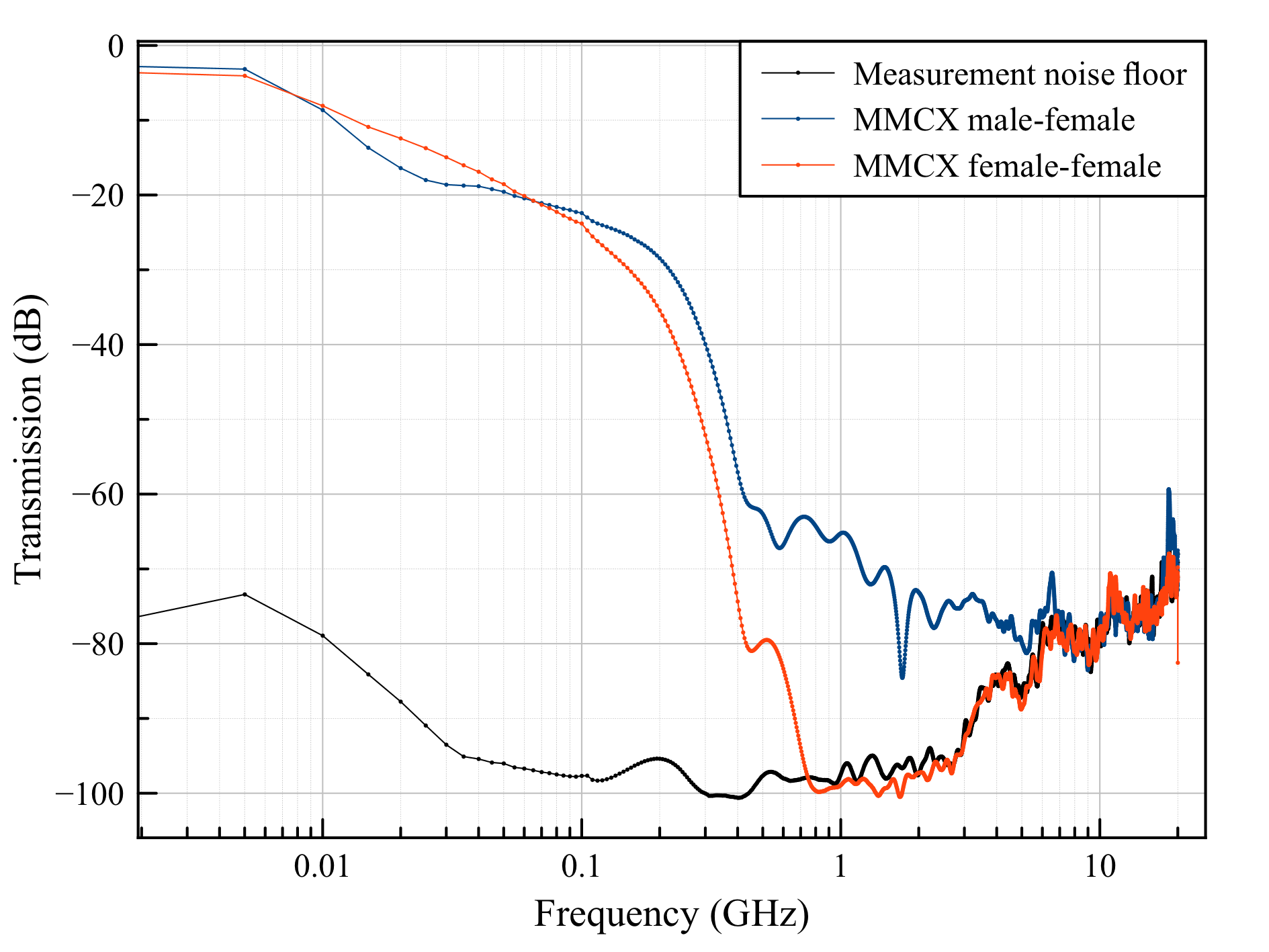

.MMCX filters transfer function

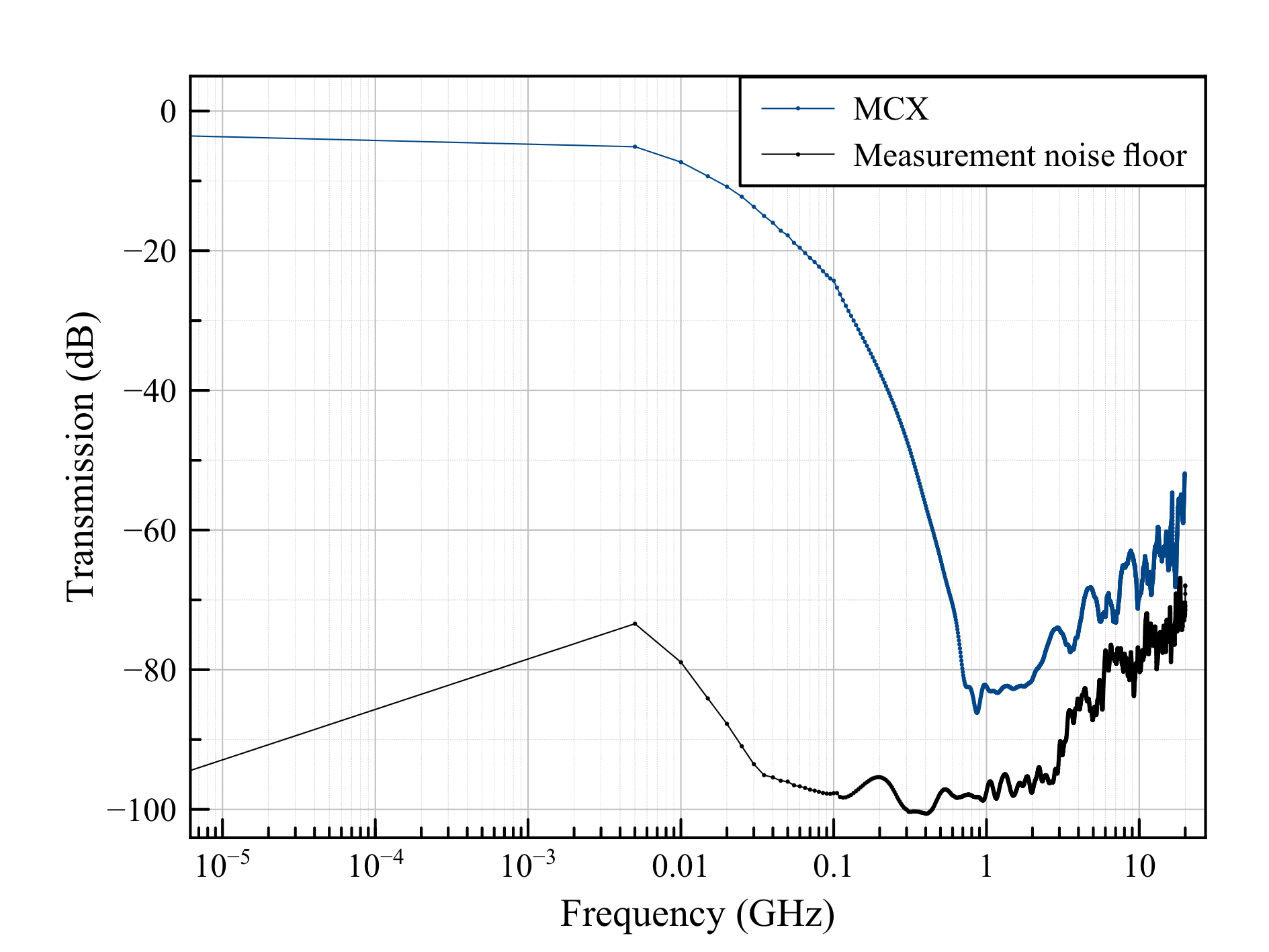

MCX filters transfer function
